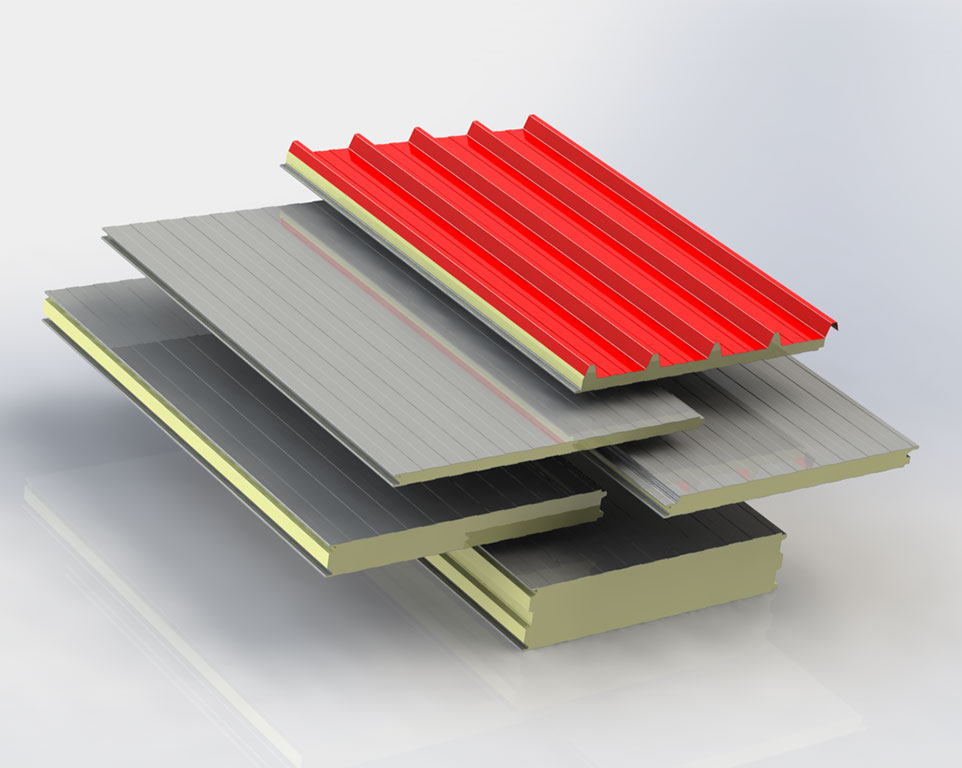

Sandwich Panels Stack

Sandwich Panels

We provide a diverse range of panels with Polyisocyanurate (PIR) which include:

  • PPGI (Pre Painted Galvanised Steel)
  • PPGL (Pre Painted Galvalume Steel)
  • Aluminium
  • Stainless steel

Technical Data Sheet

Typical Details

Facing Profiles

Flat Surface
Facing Profile F3

Flat (F)

Mesa Surface
Facing Profile L3

Mesa (L)

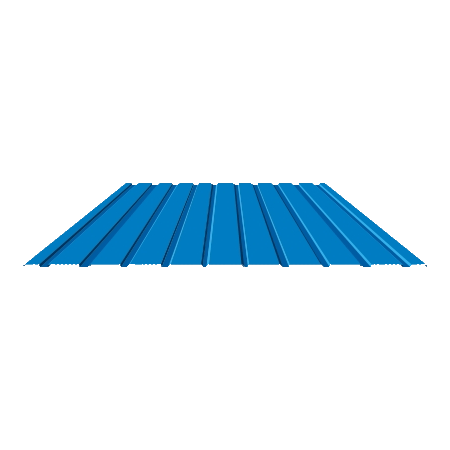

Micro Surface
Facing Profile M3

Micro (M)

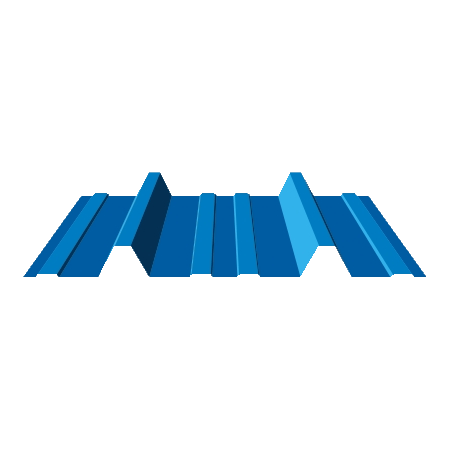

Rib Surface
Facing Profile R3

Rib (R)

Facing Materials

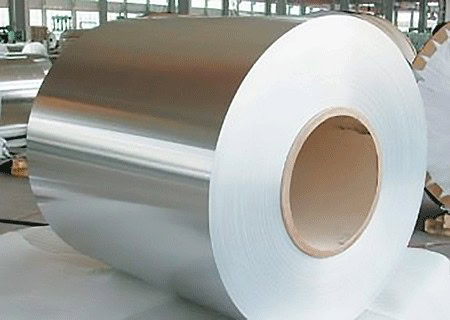

Stainless Steel

Stainless Steel

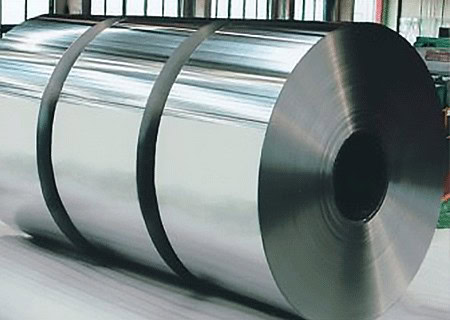

Aluminium

Aluminuim

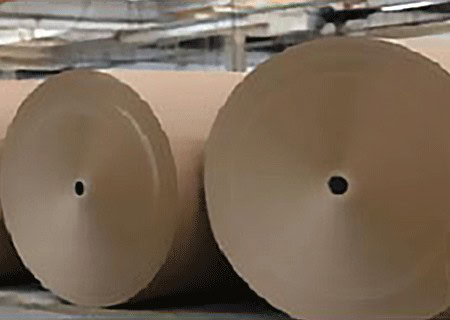

Paper Roll

Paper

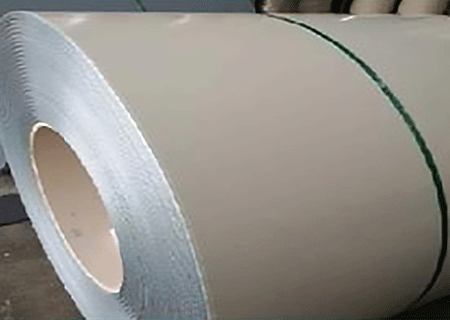

PPGI PPGL 1

PPGI / PPGL

Joint Type

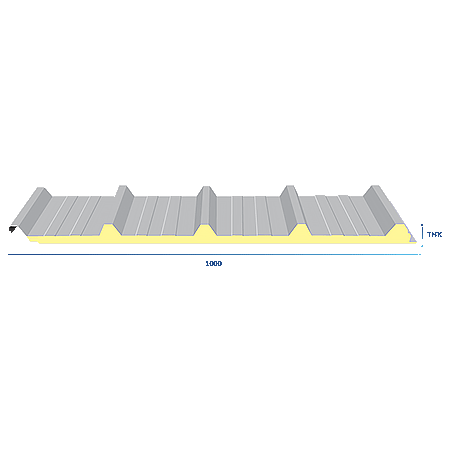

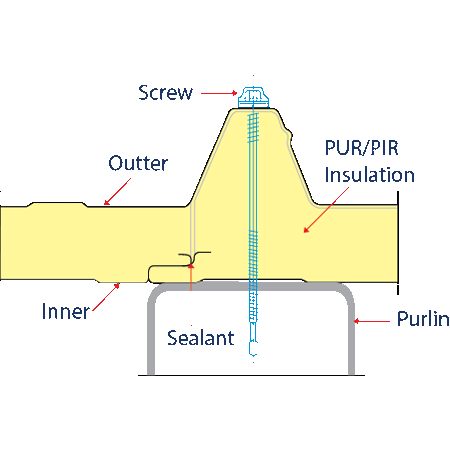

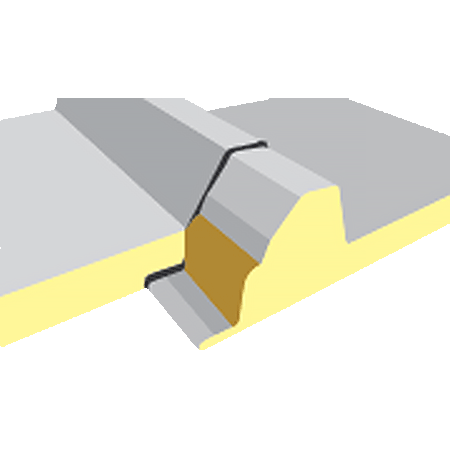

Roof Panel
Roof Panel 1
Roof Panel1

Roof Panel

THK (mm): 30/ 50/ 75/ 100

Measurement

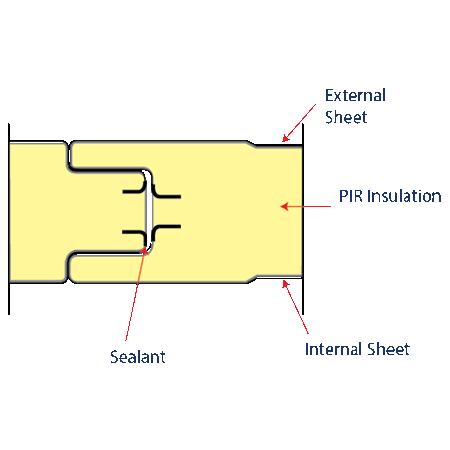

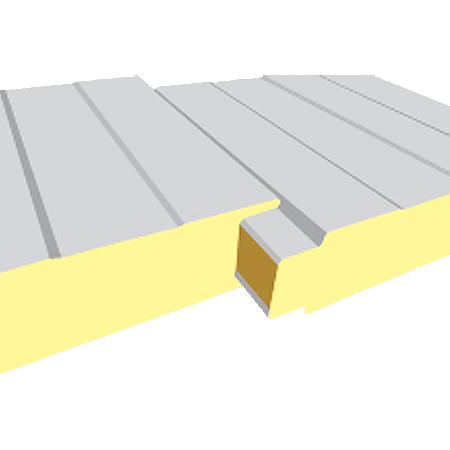

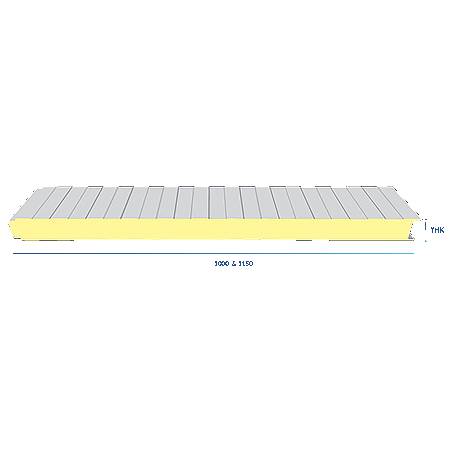

Standard Joint
Standard Joint 1
Standard Joint 2

Standard Joint

THK (mm): 40/ 50/ 75/ 100

Measurement

Type of Sandwich Panel Panel Thickness (mm) Standard Thickness of Facing (mm) Panel Weight (kg/m)
External Internal 1000mm
CS-PIR-R-30 30 0.50 0.50 10.68
CS-PIR-R-50 50 0.50 0.50 11.48
CS-PIR-R-75 75 0.50 0.50 12.48
CS-PIR-R-100 100 0.50 0.50 13.48
Type of Sandwich Panel Panel Thickness (mm) Standard Thickness of Facing (mm) Panel Weight (kg/m)
External Internal 1000mm 1150mm
CS-PIR-W-40-SJ 40 0.50 0.50 10.16 11.52
CS-PIR-W-50-SJ 50 0.50 0.50 10.56 12.00
CS-PIR-W-75-SJ 75 0.50 0.50 11.56 12.96
CS-PIR-W-100-SJ 100 0.50 0.50 12.56 14.28

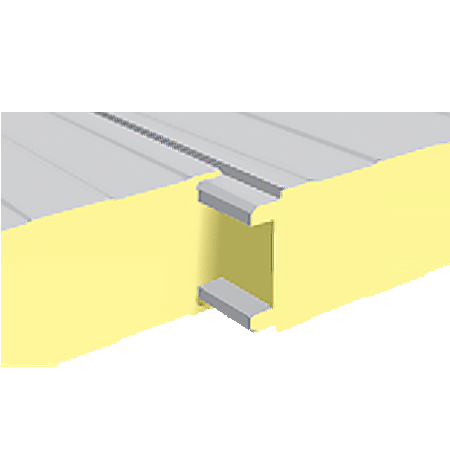

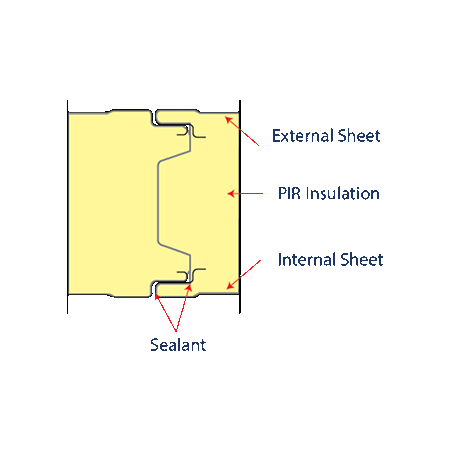

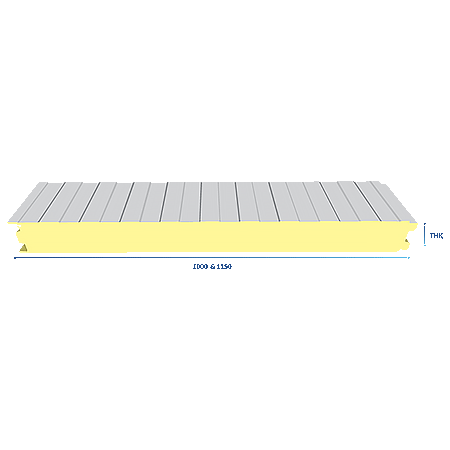

Fire Reated Joint1
Fire Rated Joint1
Fire Reated Joint

Wall Panel – Fire Rated Joint

THK (mm): 100/ 125/ 150/ 175/ 200

Measurement

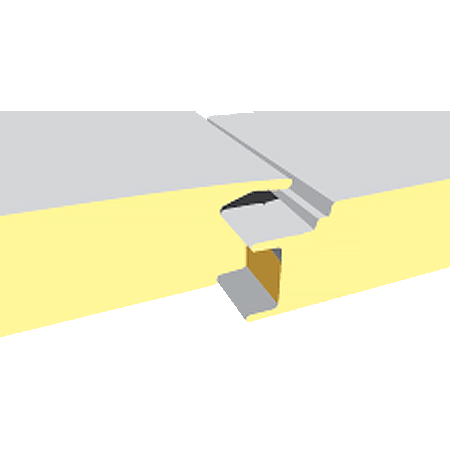

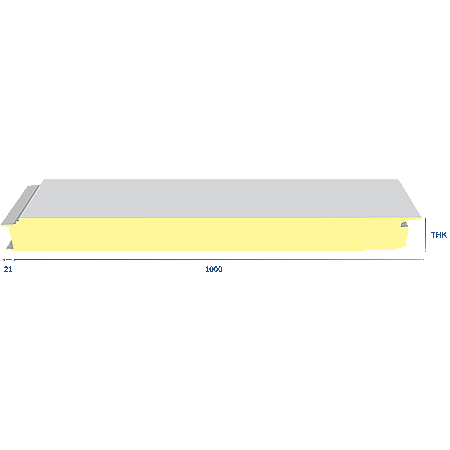

Hidden Fix
Hidden Fix 1
Hidden Fix 2

Wall Panel – Hidden Fix

THK (mm): 50/ 75/ 100

Measurement

Insulated Door

Be it manual, electric operated or customised doors, we offer various choices based on your specifications and request.

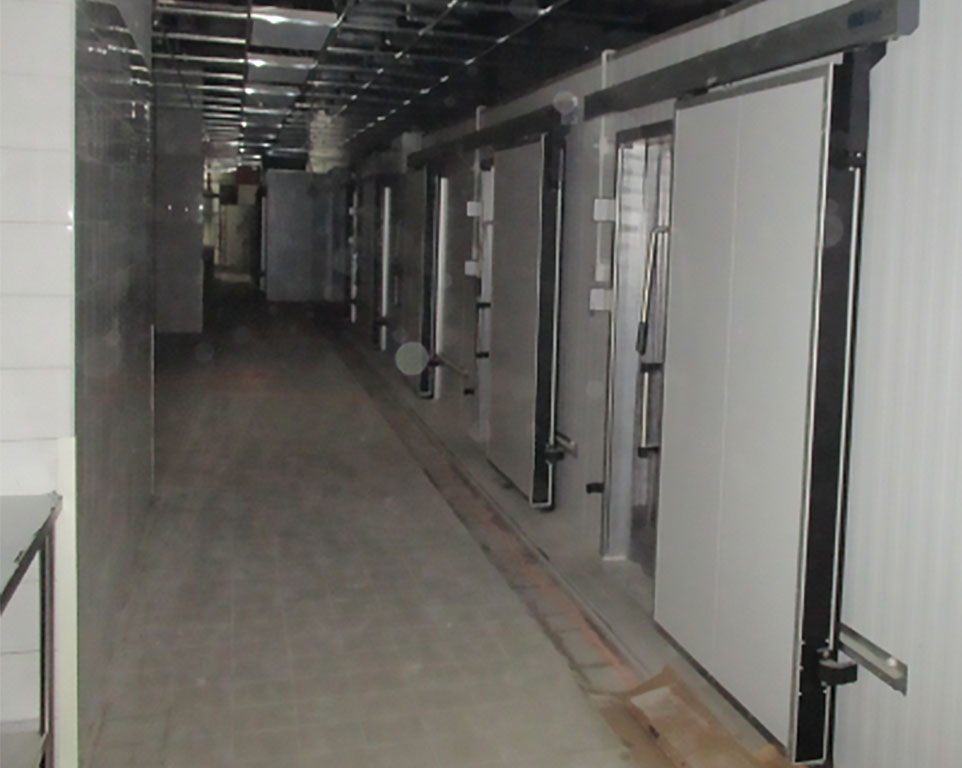

Swing Door

Swing Door

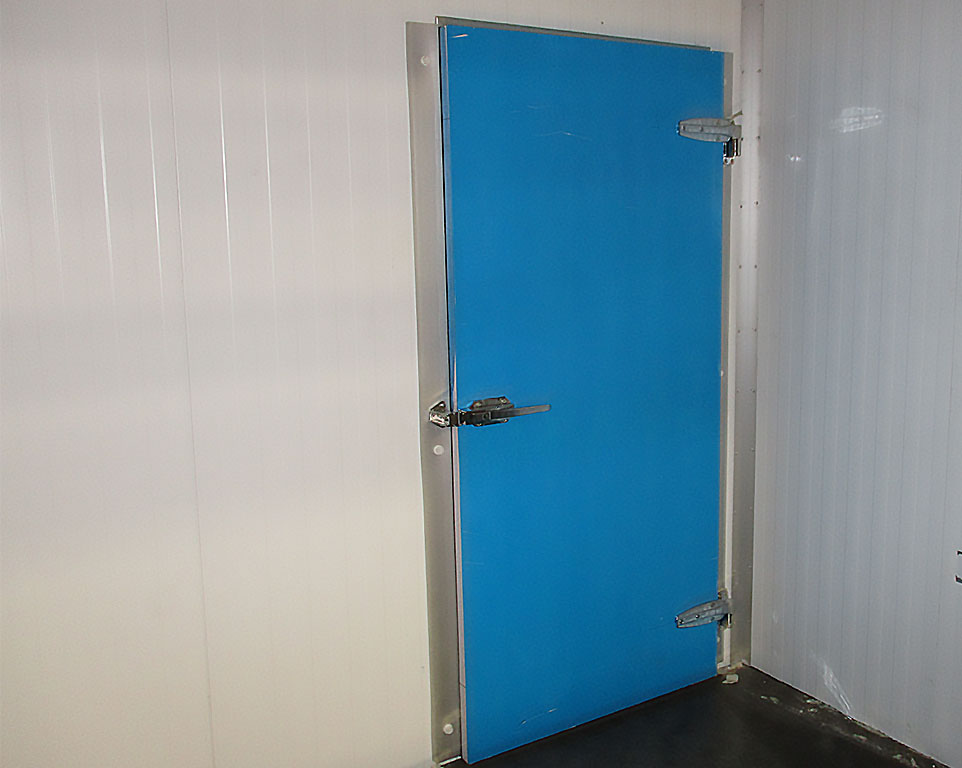

Sweep Door

Sweep Door

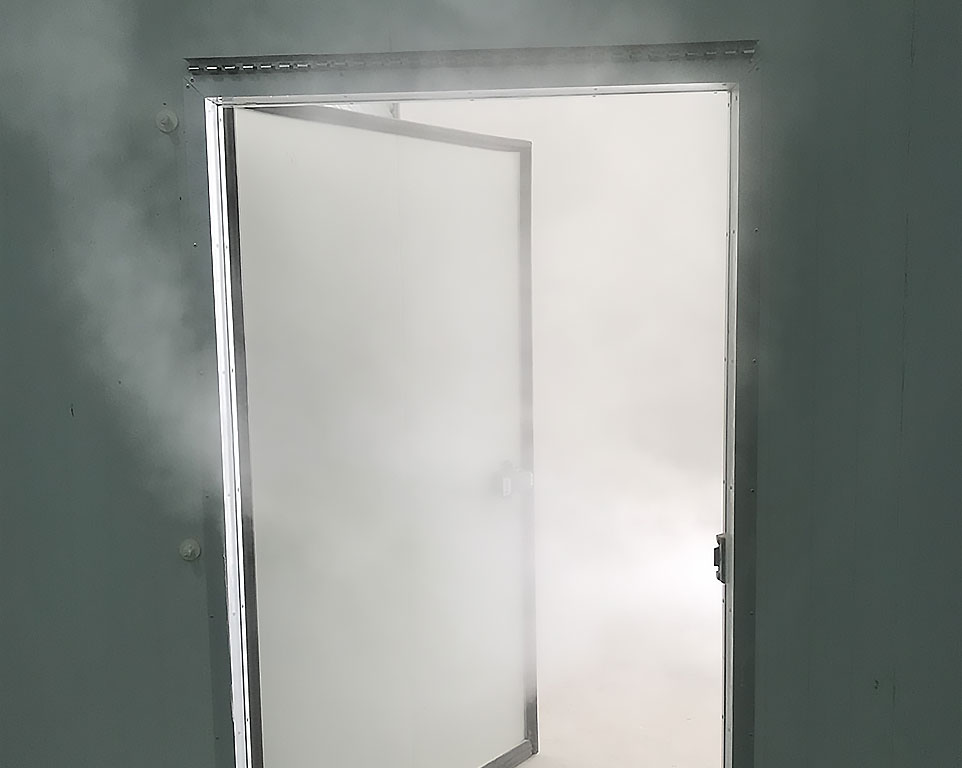

Overlapping Door

Overlapping Door

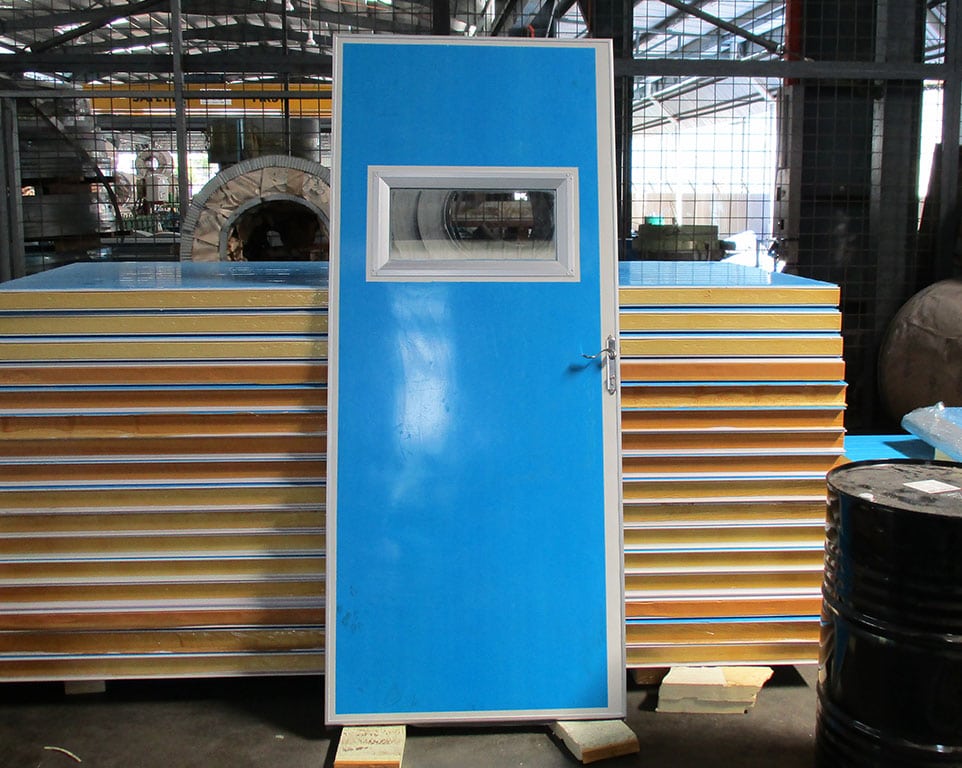

Office Door

Office Door

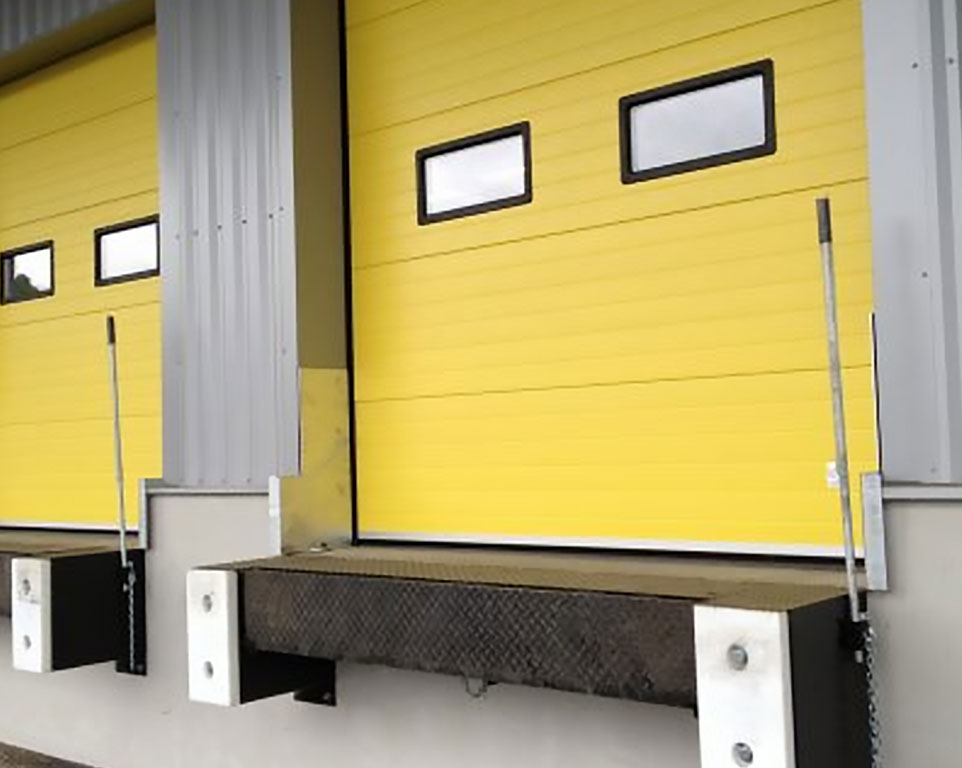

Sectional Overhead Door

Sectional Overhead Door

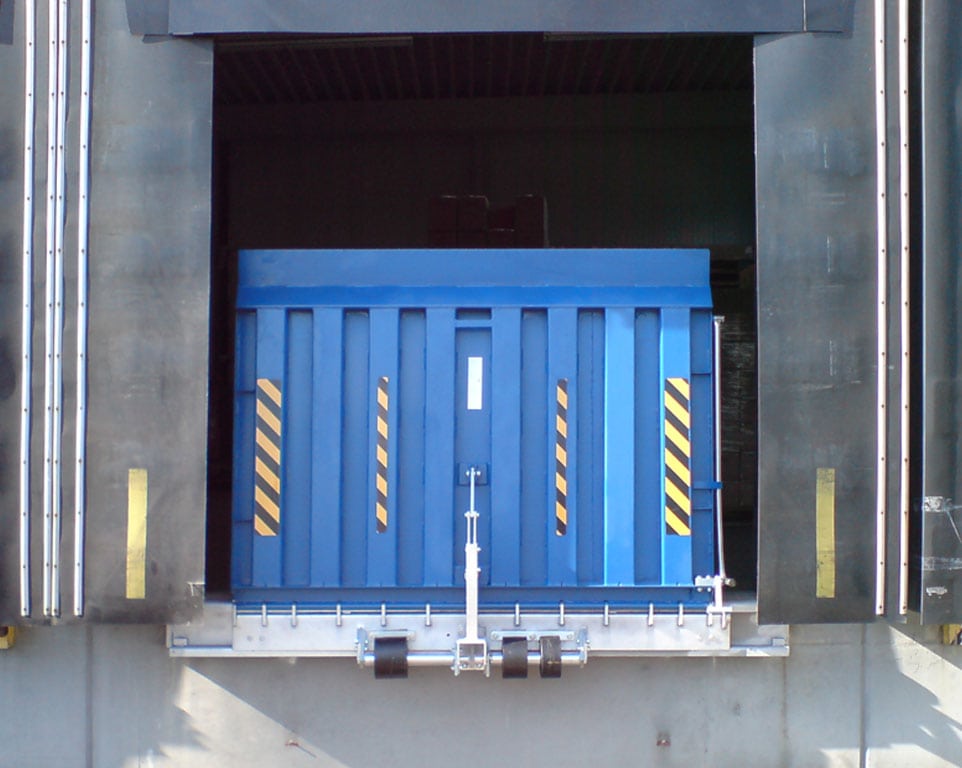

Dock Leveler

Dock Leveler

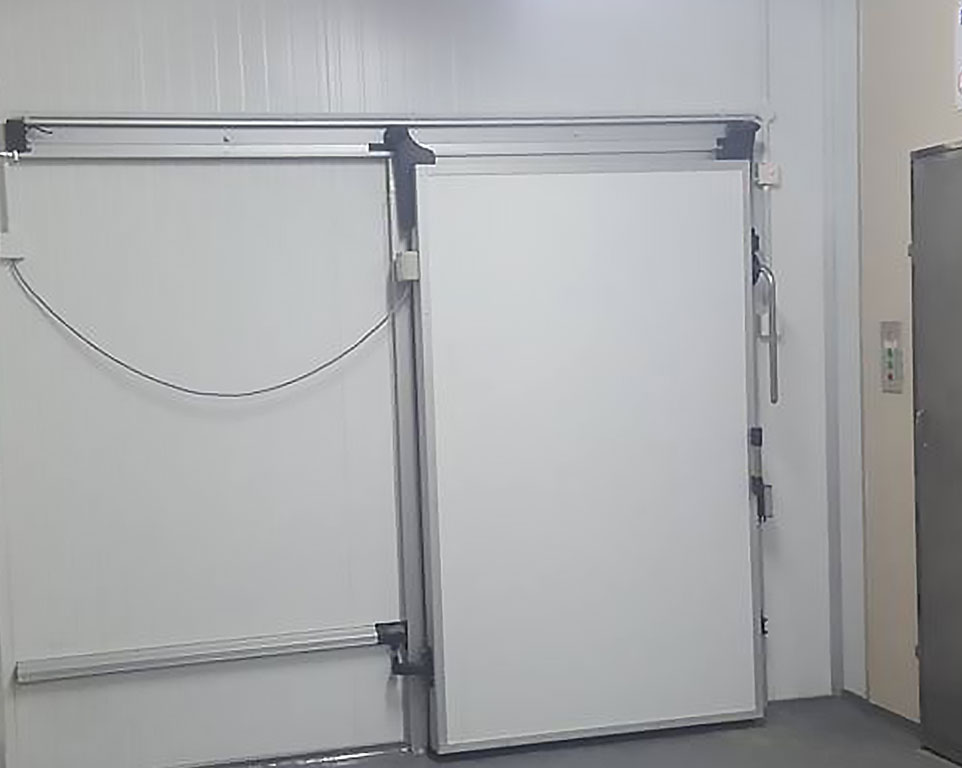

Manual Slicing Door

Manual Slicing Door

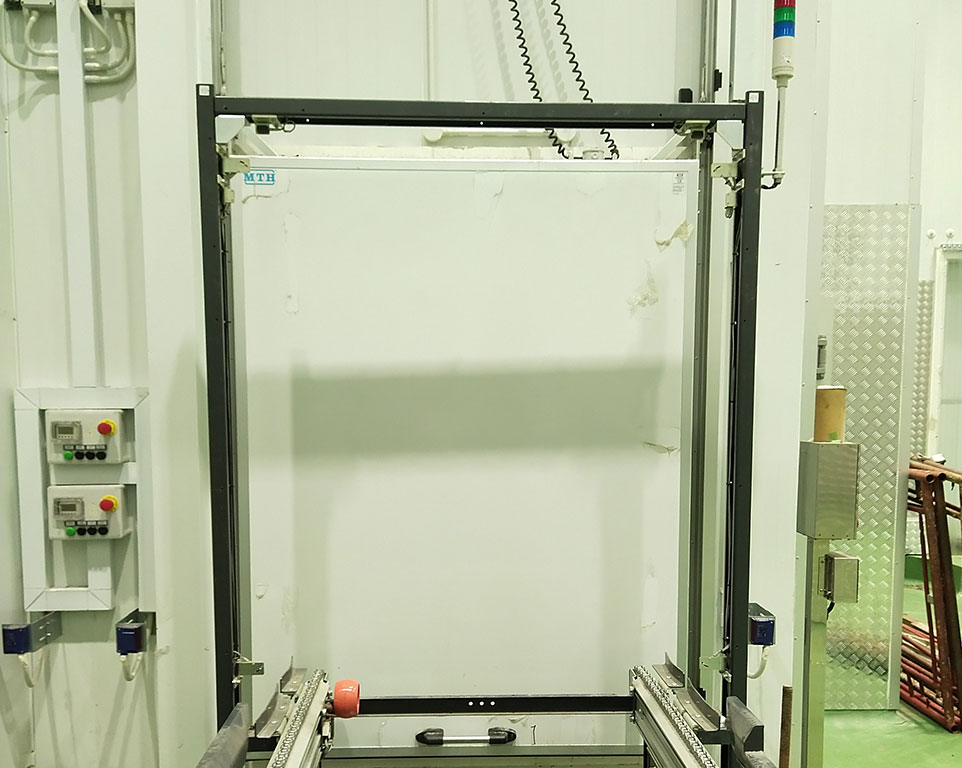

Automatic Slicing Door

Automatic Slicing Door

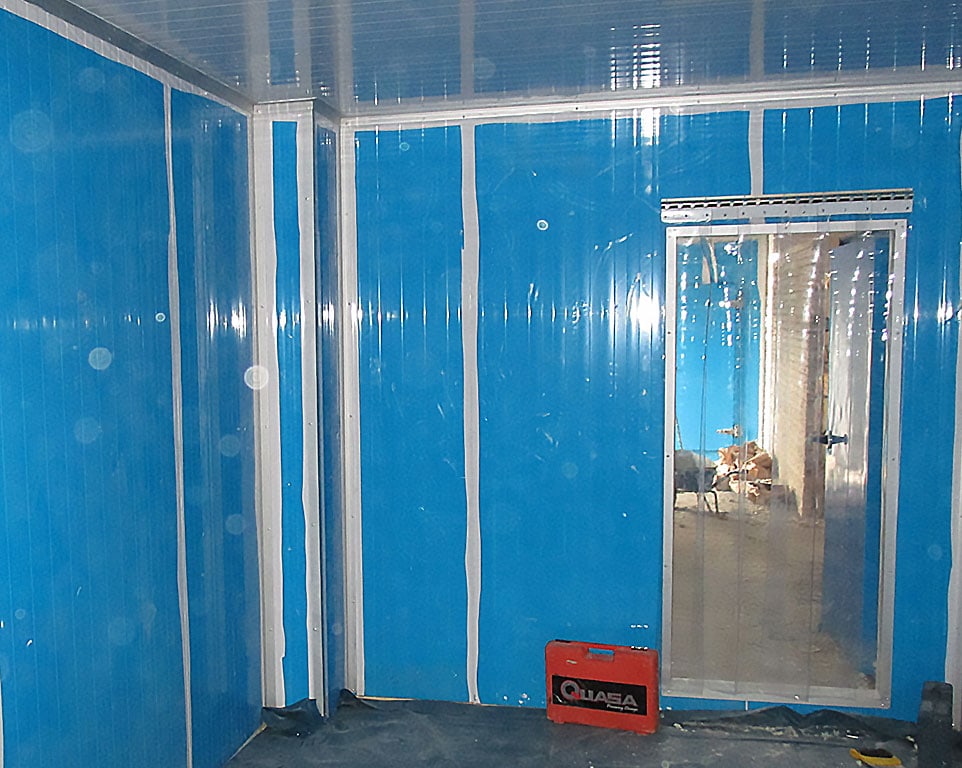

Curtain Door

Curtain Door

Insulated Door Range

  • Swing Door
  • Sweep Door
  • Overlapping Door
  • Office Door
  • Sectional Overhead Door
  • Dock Shelter
  • Dock Leveler
  • Manual Sliding Door
  • Automatic Sliding Door
  • Automatic Sliding Door (Double Leaf)
  • Automatic Vertical Sliding Door
  • To N Pro / Cowboy Door
  • Rapid / High Speed Roll Up Door
  • PVC Curtain Swing Door
  • PVC Curtain Strip

Are you ready for a consultation ?

We are your one stop solution for customized cold rooms requirement. Schedule your appointment now!

Book Appointment

Type of Sandwich Panel Panel Thickness (mm) Standard Thickness of Facing (mm) Panel Weight (kg/m)
External Internal 1000mm 1150mm
CS-PIR-F-100-FR 100 0.50 0.50 12.52 14.36
CS-PIR-F-125-FR 125 0.50 0.50 13.48 15.52
CS-PIR-F-150-FR 150 0.50 0.50 14.52 16.68
CS-PIR-F-175-FR 175 0.50 0.50 15.52 17.80
CS-PIR-F-200-FR 200 0.50 0.50 16.52 18.96
Type of Sandwich Panel Panel Thickness (mm) Standard Thickness of Facing (mm) Panel Weight (kg/m)
External Internal 1000mm 1150mm
CS-PIR-W-50-HF 50 0.50 0.50 11.00 –
CS-PIR-W-75-HF 75 0.50 0.50 12.00 –
CS-PIR-W-100-HF 100 0.50 0.50 13.00 –
